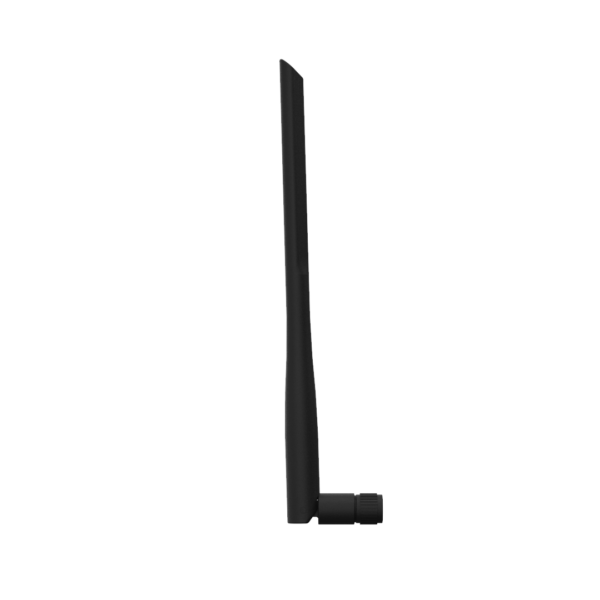

3.5dBi LoRa Antenna Features
- Maximal gain: 3.5dBi
- Frequency range: 868MHz
- Antenna Length: 23.5cm
- SMA male connector
- LoRa-E5 dev board and mini board
Applications for LoRa often include urban environments or large stretches of land which require gateways that can provide extensive coverage. Some LoRa Gateways do not have an integrated Antenna or an antenna that does not provide the required range. For this kind of scenario, Gateways can be upgraded with antennas. This LoRa antenna can make a useful addition to your LoRa system.  It’s a robust solution to provide extra power and range for LoRa Base stations. The antenna has an average gain of 3.5 dBi, a length of 23.5cm, and a frequency of 868MHz.
The Antenna has an SMA Male connector. It can be connected to the LoRa-E5 Development Board and LoRa-E5 mini. By using an SMA to I-PEX Antenna Cable it can also be connected to the Grove-LoRa-E5.
3.5dBi LoRa Antenna Application
The antenna can be used in any environment where long-range LoRa connections are required.
- Agriculture
- Environmental Monitoring
- Urban Monitoring
2.8dBi LoRa Antenna Technical Parameters
| Electrical parameters | |
| frequency range | Â 868MHz |
| Input impedance | 50Ω |
| Â Max Gain | 3.5dBi |
| Max input power | <10W |
| Polarization Mode | Vertical |
| Radiation direction | omnidirectional |
| Connector Type | SMA Male |
| Mechanical Parameters | |
| Total length | 235 /-3mm |
| Sustaining power | >=3kg |
| Coaxial cable | RG178 line |
| Environment parameter | |
| Operating Temperature | -30°C~65°C |
ECCN/HTS
| HSCODE | 8517707090 |
| USHSCODE | 8517620010 |
| UPC |
| ROHS | 1 |
Packaging
1 x 3.5dBi LoRa Antenna
