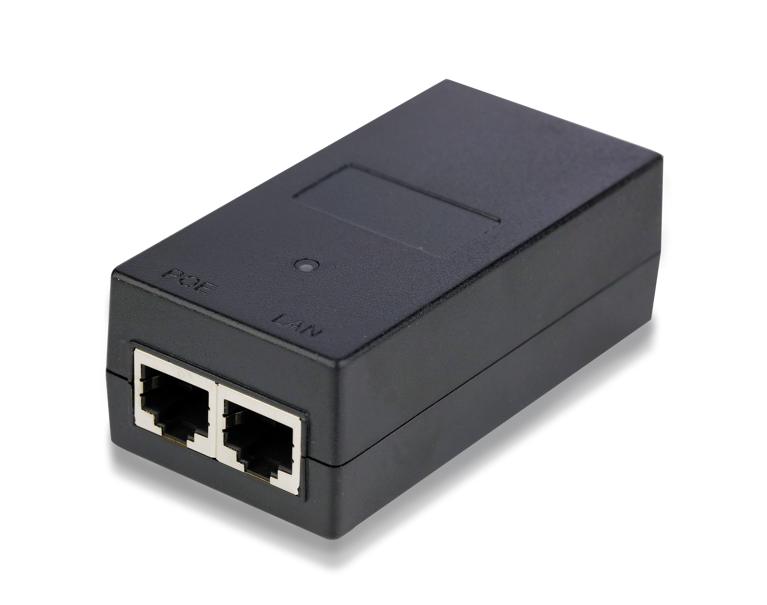

COTX POE Injector

The COTX PoE injector is a device that allows you to combine power and network connectivity to your PoE enabled devices using the same Cat5/5e or Cat6 twisted pair cable. It is suitable to be used with COTX Gateways.

Product Features

• It is rated operating voltage 100Vac to 240Vac input AC voltage.
• Input rated AC voltage frequency range 50Hz or 60Hz and single phase.
• The rated output voltage is specified at 48V±5％.
• The output current will be performed from 320mA.
• This adaptor is capable of supporting 12Watts continuously under all specified conditions.

Operating Temperature

0°C ~50°C

Operating Humidity

5~90% RH. Non-condensing

Overcurrent protection

Supports 10/100 Mbps Ethernet

90mm＊45mm＊35mm (±1 mm)

Package Inclusion

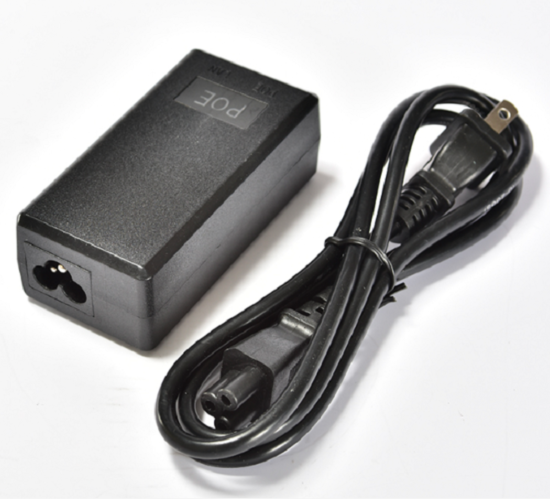

1pc POE injector
